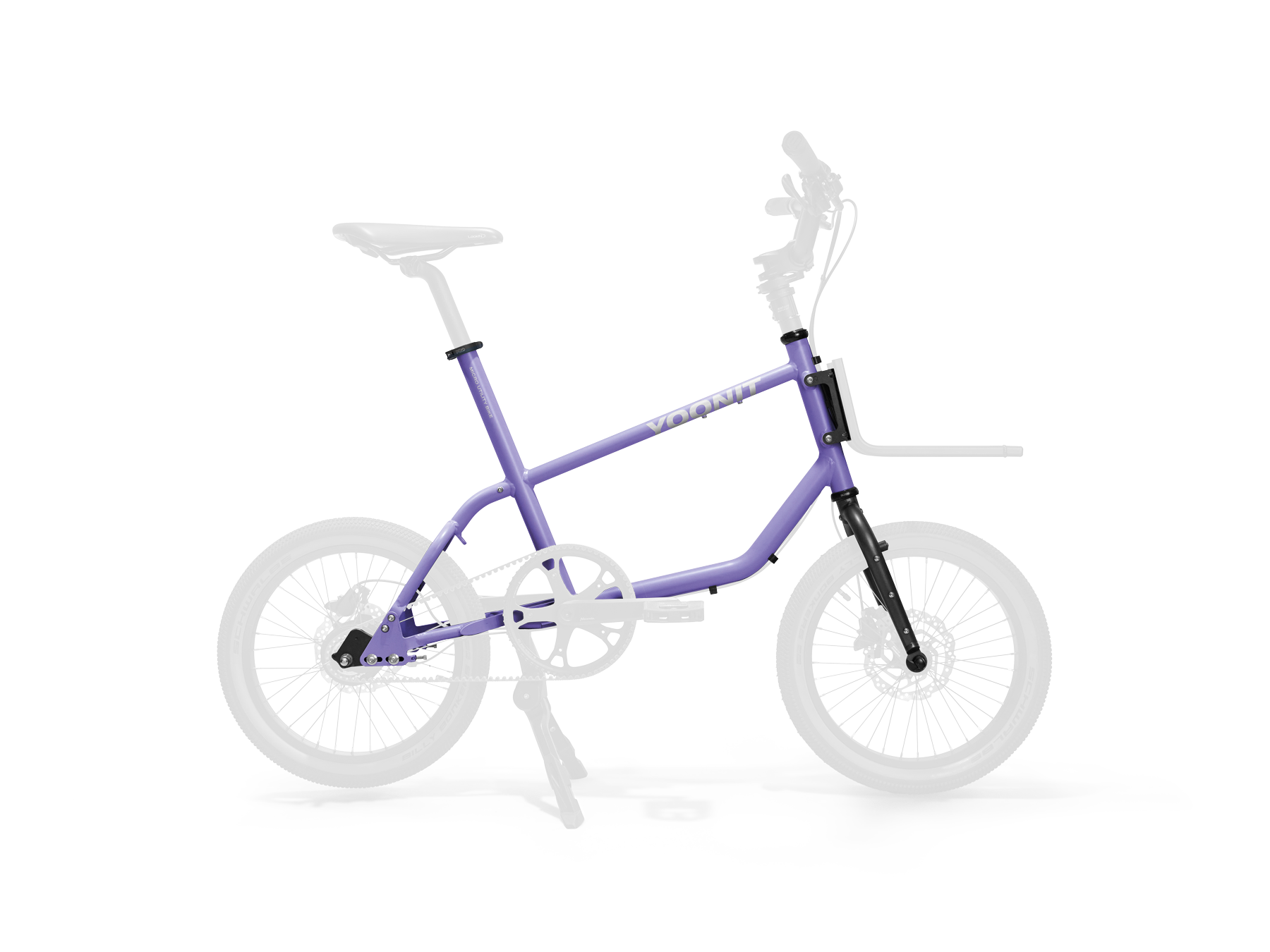

YOONIT Micro Classic Frameset
CrMo tubular steel, made in the Netherlands, Colour: Purple Race...
1.090,00 €
inklusive 19% MwSt., zuzüglich Versandkosten
exklusive 19% MwSt., zuzüglich Versandkosten
Ready for dispatch within 6 weeks.
YOONIT Micro Classic Frameset
915,97 €
CrMo tubular steel, made in the Netherlands, Colour: Purple Race
DETAILS
CrMo tubular steel, made in the Netherlands, Colour: Purple Race
Specifications and Components of the Frameset
| Frameset Components | Frame, Fork, Headset incl. star nut, Seat clamp, Dropouts, AVS Front Adapter |
| Frame | CrMo steel tube, made in the Netherlands |
| Frame size | universal, suitable for body heights between 1.60 m and 2.00 m |
| Gates belt compatible | yes (integrated frame lock for belt drive) |
| Fork | CrMo steel tube, color: Graphite Grey |
| Fork steerer diameter | ø 1 1/8 |
| Dropouts Fork | 9 x 100 mm, quick-release mount |
| Headset front | acros Blocklock 164° ZS44/28,6, ZS44/30 (included) |
| Assembly | fully pre-assembled |
| Front wheels | 18 inch for tire sizes up to 55-305, 20 inch for tire sizes up to 35-355 |
| Rear wheels | 18 inch for tire sizes up to 55-305, 20 inch for tire sizes up to 35-355 |
| Front brakes | Disc only, IS2000 Standard (160 mm), Disc size up to Ø 180 mm |
| Rear brakes | Disc only, IS2000 Standard (160 mm), Disc size up to Ø 180 mm |
| Bottom bracket | BSA 68 mm (1.37 x 24 TPI) |
| Rear dropouts | Stainless steel, sliding dropouts, 10 x 135 mm, without derailleur hanger |
| Chainstay length | adjustable: approx. 360–376 mm (14.2–14.8 in) |
| Chainstay clearance | minimum clearance between crank arms: 137 mm (5.4 in) |
| Max. chainring size | ø 240 mm (9.45 in) |
| Seatpost diameter | ø 30.9 mm |
| Seat clamp diameter | ø 34.9 mm (seat clamp included) |
| Payload and Dimensions | |
| Wheelbase | 137 cm (53.9 in) |
| Weight | XX kg |
| Max. payload (incl. carrier and accessories) | 40 kg |
| Max. total load (incl. rider) | 140 kg |
| Max. rider weight | 100 kg |
| Subject to errors and changes. |
